DT-420 transter laminating machine

HOME - DT-420 transter laminating machine

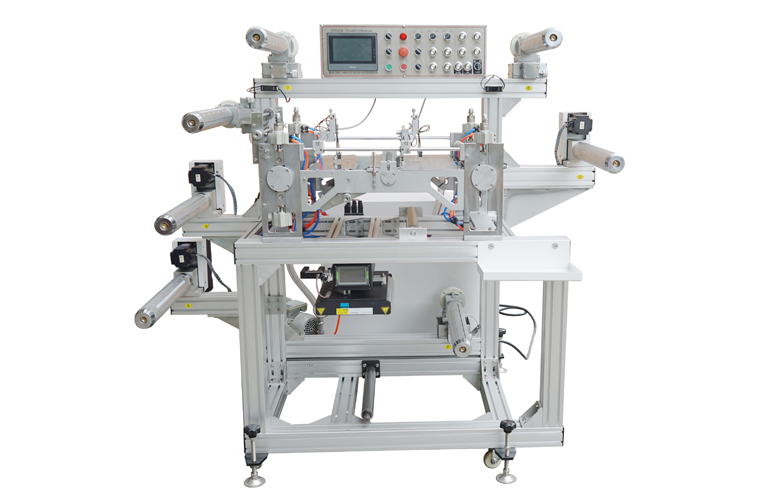

DT-420 transfer laminating machine

Author: ComeFrom: Date:2018-11-27 16:26:37 Hits:3587


設備詳情

型號ModelDT-420
最高轉貼速度Highest repost speed30-200t/min
最大進料寬度Maximum feeding width420mm
貼合精度Laminating precision±0.2mm(特殊材料除外)
機器尺寸Size1900X1150X1720mm
機器重量Weight350kg
電源PowerAC380V
總功率Total power4.5KW


性能特點:
Function and Characteristic
1、This equipment uses high-performance electrical components, high-precision positioning of the electronic eye, single PCS  position recognition effectively solves the cumulative tolerance problem;
2,、X-direction positioning accuracy is up to ±0.1mm, using a circular knife machine to stick the way, the material is stable;
3,、It can achieve equal or non-equal size of product mutual work;
4、 The rubber roller rolling type reversal completely eliminates the bubble and wrinkles generated;
5.、The Y-direction can be equipped with an automatic correction system to achieve higher precision.
